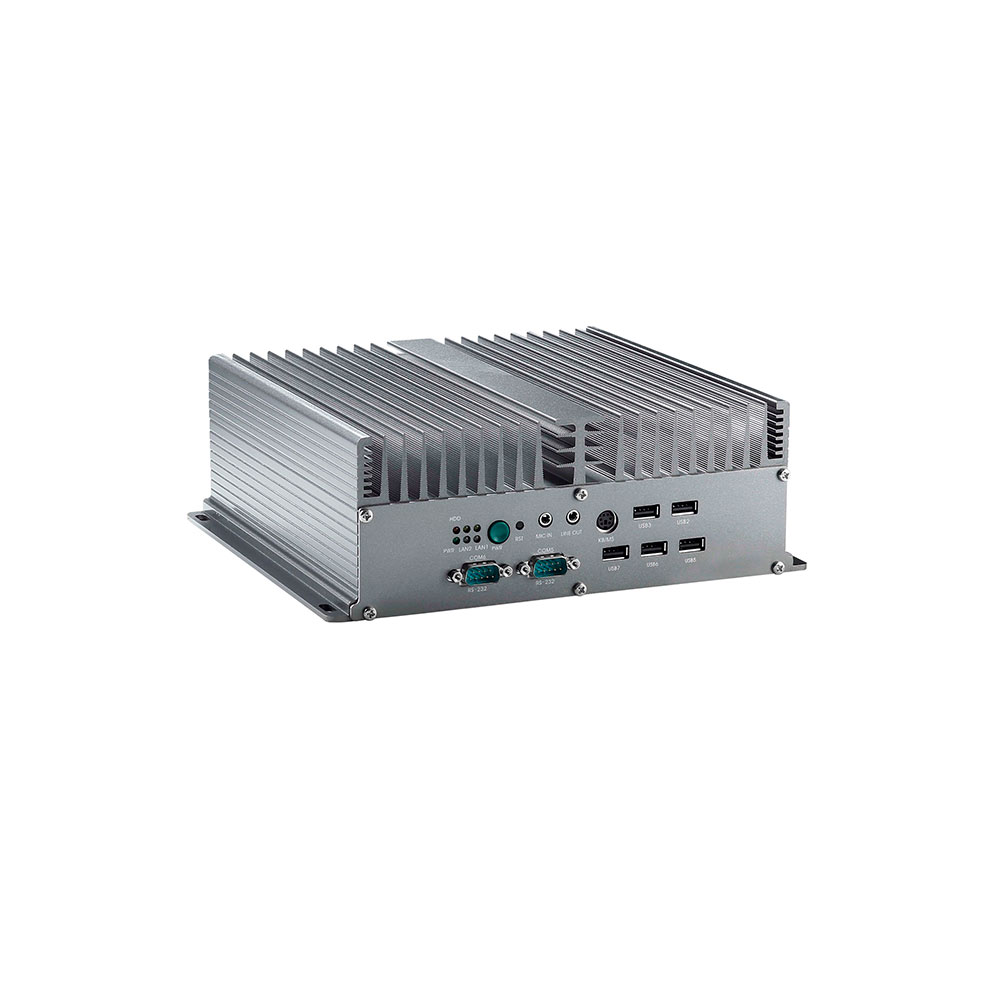

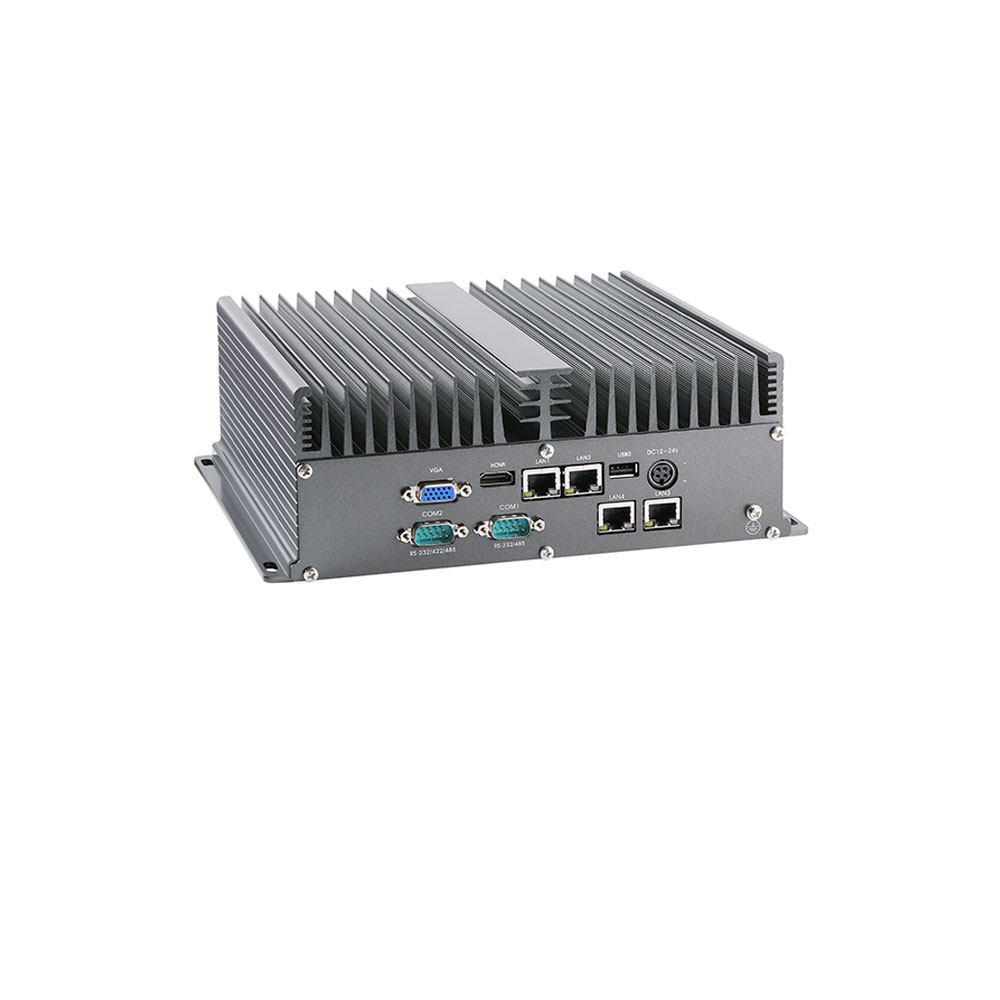

CPU: Intel Core i5-3210M i7-3520M GPU
芯片組: Intel HM76
內存: DDR3 SO-DIMM
I/O端口:1*LINE OUT&MIC,6*USB,4*LAN,1*HDMI,1*VGA,1*KB/MS
串口:2*RS-232,2*RS-232/422/485
看門狗:256級,可編程時間到中斷、時間到系統復位
存儲空間:1*2.5"SATA盤位
擴展總線:1個標準mPCIEx1接口或mSATA
輸入電源:DC_IN 12~24V
產品尺寸:246*209*84mm(W*D*H)
System Hardware
Processor
Intel® Core? i5-3320M Processor (3M Cache, up to 3.30 Ghz)
BIOS
32Mb AMI SPI
Chipset
Intel HM76
Memory
2*204 Pin SO-DIMM socket, 4GB (up to 16GB Max. Capacity ) DDR3 installed
Storage
One Drive Bay for SATA 2.5" HDD, 1*MSATA(SSD) space
Watchdog Timer
Programmable 256 levels timer interval，setup by software
Audio
Intel HD Graphics 4000
Ethernet
4*10/100/1000 Mbps Ethernet Controller
Graphics Engine
Intel® HD Graphics
External I/O Interface
Ethernet
4 (RJ-45)
LAN1,10/100/1000Mbps intel 82583V,suports wake on LAN/PXE
LAN2,10/100/1000Mbps intel 82583V,suports wake on LAN/PXE
LAN3,10/100/1000Mbps intel 82574L,suports wake on LAN/PXE
LAN4,10/100/1000Mbps intel 82574L,suports wake on LAN/PXE
Audio
1*LINE OUT & MIC-IN
USB Port
4*USB
Display
1*HDMI, Supports resolution up to 2560 x 1600@60Hz
1*VGA，Supports resolution up to 2048*1152@60Hz
Serial Port
2*RS-232, 1*RS-232/485, 1*RS-232/422/485
Internal I/O Interface
USB
3*USB2.0 pin header
PS/2
1*PS/2 KB/MS
LVDS
1*18/24-bit LVDS (Optional)
LPT
1*LPT (Optional)
SIM
1*SIM slot
DIO
1*16-bit DIO (Optional)
General
Power Input Votage
DC_IN 12V~24V
Power Adapter
AC to DC, DC12V 90W (Optional)
Expansion slot
1*MINI PCIEx1 （with SIM slot)
1*MINI PCIEx1(supports MSATA by the code switch)
Dimensions (W x Dx H)
246 x 209 x 84 mm
Colour
Iron gray
Mounting
Stand/ Wall
Enclosure
Aluminum Housing
Thermal Solution
Fanless
Environment
Operating Temperature
-10 ~ 60°C
Storage Temperature
-40 ~ 80°C
Relative Humidity
5~ 95% (non-condensing)
