BASIC INFO
| 15” Fanless Panel PC BPC-6015-5T | |
| Specifications | |
| Processor | i5-5200U |
| Memory RAM | 4.0GB (max. 8.0GB) Optional |
| Storage | mSATA SSD supported, 1*2.5"SATA HDD space |
| Power | DC12~24V |

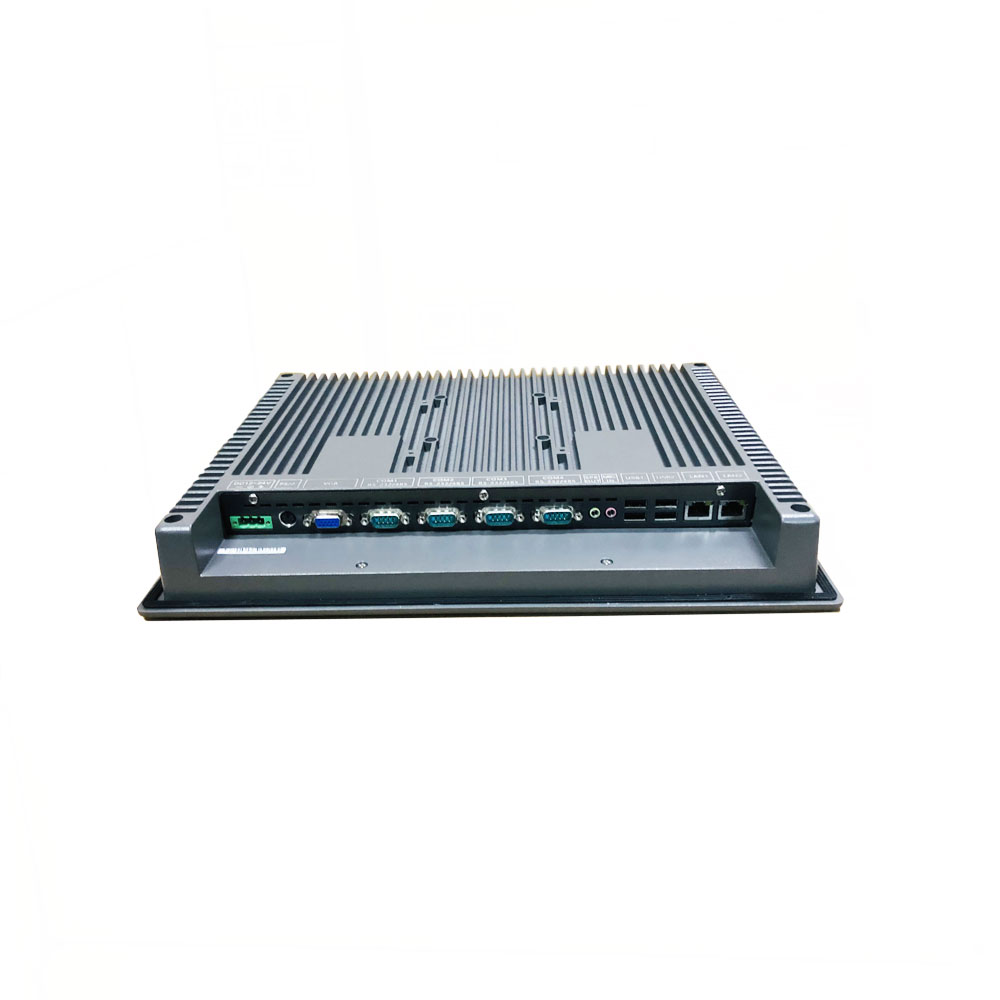

| I/O Interface | 2*LAN,4*USB,1*VGA,1*SPK OUT & MIC,1*PS/2, 4*RS-232/485,1*DC power jack |
| Display | |
| LCD Size | 15"(4:3) |
| Max Resolution | 1024(W) x 768(H) |
| Backlight MTBF(hrs) | 50000 |
| Brightness(cd/m2) | 400 cd/M2 |
| LCD | 1024*768 XGA TFT LCD |
| Contrast Ratio | 400:1(typ.) |
| Pixel Pitch (mm) | 0.264(H)x 0.264(V) mm |
| Viewing Angle (H-V) | CR>10,60～70°(H) , 50～70°(V) |
| Touch Screen | 5-wire resistive type flat touchscreen |
| Physical Characteristics | |
| Color | Iron gray |
| Construction | Aluminum front bezel |
| Dimensions (LxWxH) (mm) | 396*310*52mm(W*D*H) |
| Mounting | Stand, panel mount, rack mount |
| Weight | 4.5kg |
| Environment | |
| Humidity | 10% to 95% (non-condensing) |
| IP Level | Front IP 65 |
| Operating Temperature | -10°C~50°C (14°F~122°F) |
| Storage Temperature | -20°C~60°C (-4°F~140°F) |
| Ordering Info. | |
| Item No. | Description |
| BPC-6015-i5-5200U/4G-120G SSD | 15inch Panel PC with Intel® i5-5200U CPU, 4GB DDR3 RAM, 120G mSATA SSD,resistive touch |
| Package Contents | |
| 1 x BPC-6015 Panel PC | 1 x User Manual (optional, Chinese version) |
| 1 x Screw Pack | 1 x Power Adapter and Power Cord |
| 1 x CD Driver (optional ) | 1 x2.5" HDD bracket |
